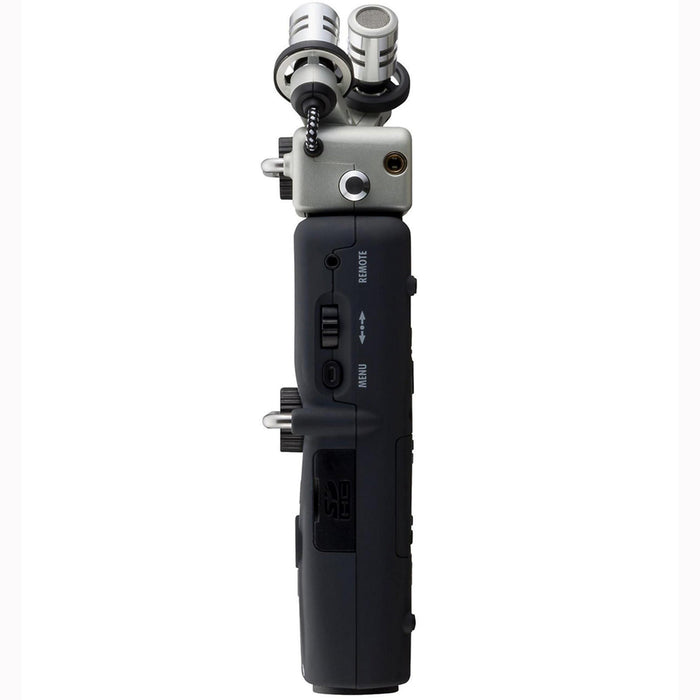

Zoom H5 4-Input / 4-Track Portable Handy Recorder with Interchangeable X/Y Mic Capsule

by ZOOM
Sold out
Original price $ 279.99
Original price $ 279.99 - Original price $ 279.99
Original price $ 279.99
Current price $ 249.99
$ 249.99 - $ 249.99
Current price $ 249.99

The H5 by Zoom provides four tracks of simultaneous recording and, like Zoom's flagship H6, it can use all of their interchangeable input capsules, allowing you to choose the best microphone for every recording situation. The flexible and powerful H5 provides everything you need to create multitrack recordings, audio for video, and state-of-the-art podcasting, broadcasting and electronic newsgathering.

Louder. Closer. Cleaner.

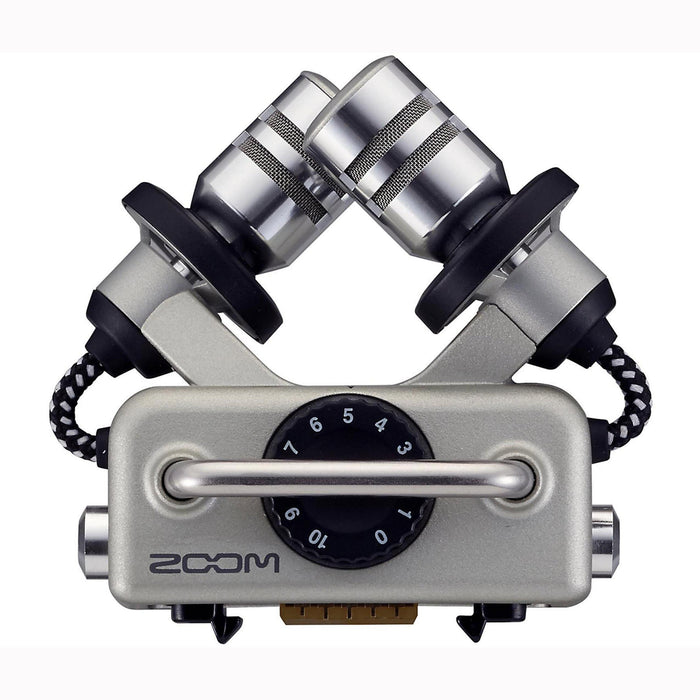

X/Y recording allows you to cover a wide area yet still capture sound sources in the center with clarity and definition, making it ideal for all types of live stereo recording. The XYH-5 X/Y microphone capsule included with the H5 provides two matched unidirectional condenser microphones set at a 90-degree angle. These are housed within an advanced shockmount that employs rugged external mic wires and rubberized material to isolate the unit from the H5 body and thus minimize vibration and handling noise. The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140 dB SPL, to be precise-equivalent to the sound of a jet aircraft from less than 200 feet away-enabling you to capture sounds louder, closer, and cleaner than you ever could before.

Ins & Outs

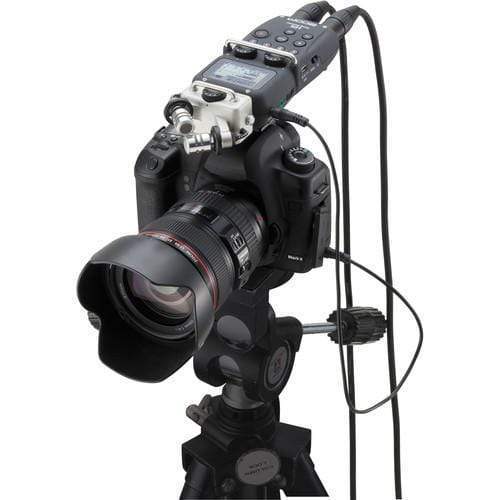

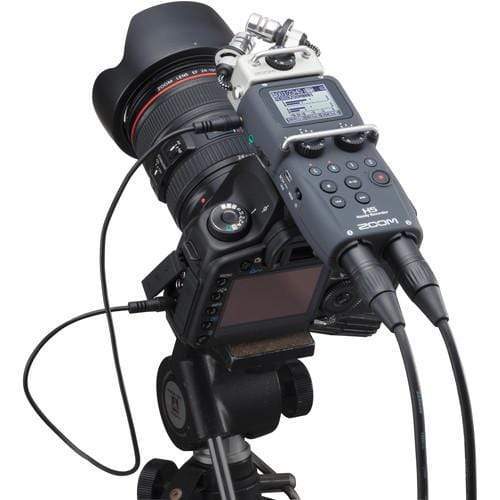

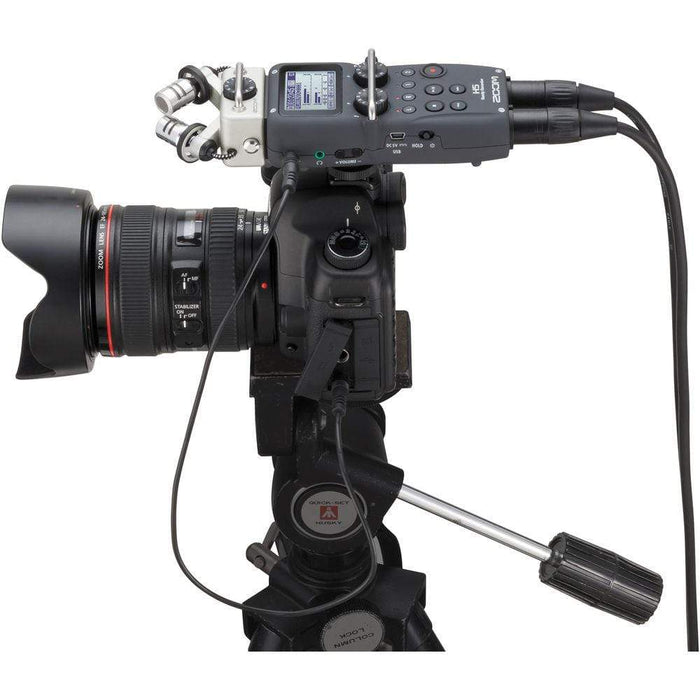

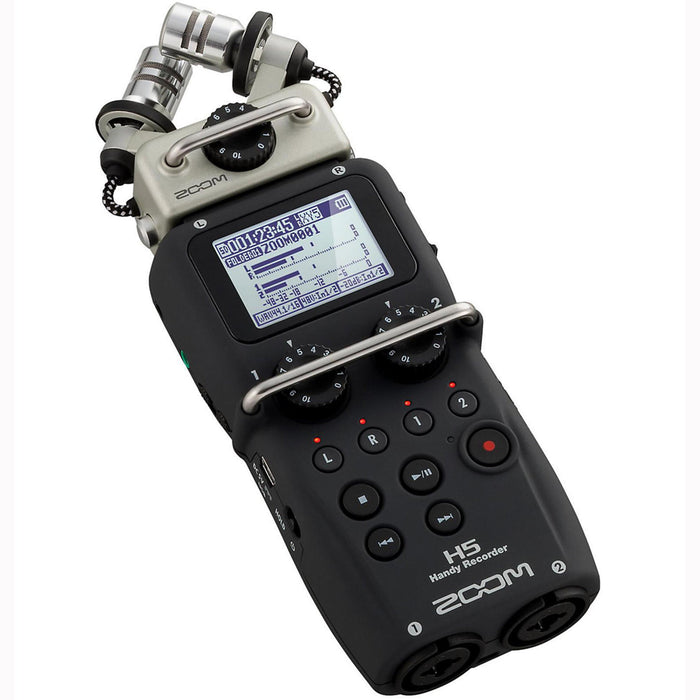

In addition to standard transport controls (stop, play/pause, record, rewind and fast-forward), the front panel of the H5 offers dedicated record arming buttons for each track, which double as mute switches during playback. A Hold switch disables all front panel buttons to prevent accidental operation during recording. The H5 can be attached to a camera strap or, with the use of the optional Hot Shoe mount, mounted directly to a DSLR or camcorder.

The H5 also provides everything you need to connect with the outside world. Dual combo XLR/TRS inputs that can handle both mic- and line-level signals allow you to connect external microphones and line-level devices like mixers, portable music players, effects processors and electronic keyboards-even electric guitars or basses equipped with active electronics. Each H5 input has its own dedicated gain control knob, located beneath a protective bar that prevents accidental movement during handling. The supplied XYH-5 X/Y capsule also provides a secondary input for connecting stereo mic- or line-level signal via a …›" mini phone jack. The H5 supports a +4 dB (professional) input level and utilizes the same high-quality preamps as Zoom's flagship H6, ensuring great-sounding recordings in all sonic environments.

File types
The H5 can operate in two different modes-choose stereo for two-track stereo recording, or multitrack for four-track recording (in either stereo pairs or individual mono tracks)-and it captures audio in the two most commonly used file formats: WAV and MP3.

The WAV files recorded by the H5 can be 16- or 24-bit, with sampling rates of 44.1, 48, or 96kHz*. They are automatically time-stamped and thus Broadcast Wave Format (BWF) compliant, allowing for precise synchronization in video post-production. MP3 files, while slightly lower in fidelity, are much smaller than WAV files and are thus easier to email and post on social networking sites-allowing you to quickly and easily share your creations around the world.

* 96kHz sampling rate available in stereo mode only

Features

  • Interchangeable input capsules
  • Detachable X/Y capsule (XYH-5)
  • Extended signal capacity and shockmounted mics
  • Four-track simultaneous recording
  • Large backlit LCD display
  • Records directly to SD and SDHC cards up to 32GB
  • Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
  • Two mic/line inputs with XLR/TRS combo connectors
  • Analog-style gain controls for each input
  • Chromatic tuner and metronome
  • Auto-record, Pre-record and Backup-record functions
  • MS decoding
  • Multitrack to stereo internal mixdown
  • Normalize, Divide and Trim editing
  • Voice memo and up to 99 marks per recording
  • A/B loop playback
  • Variable playback speed and variable pitch without affecting playback speed
  • Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
  • Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
  • Uses two standard AA alkaline or NiMH rechargeable batteries (not included)
  • Over 15 hours of operation with alkaline batteries
