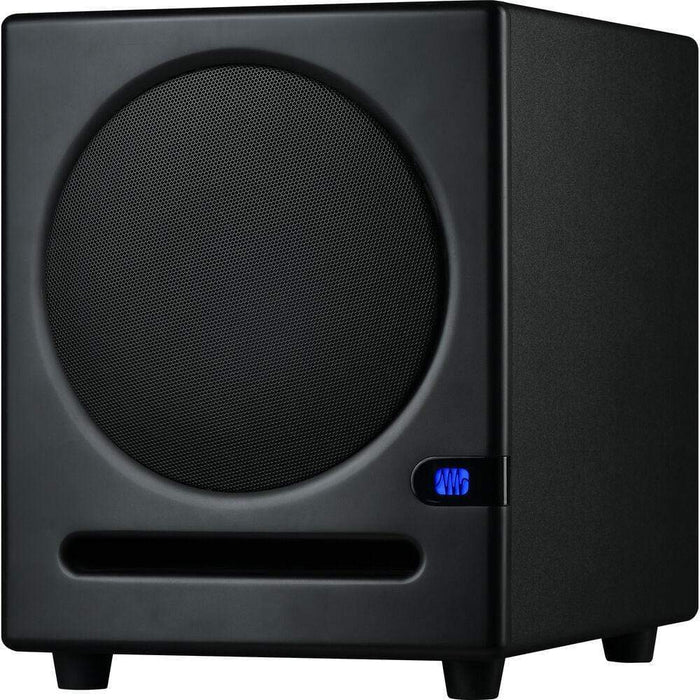

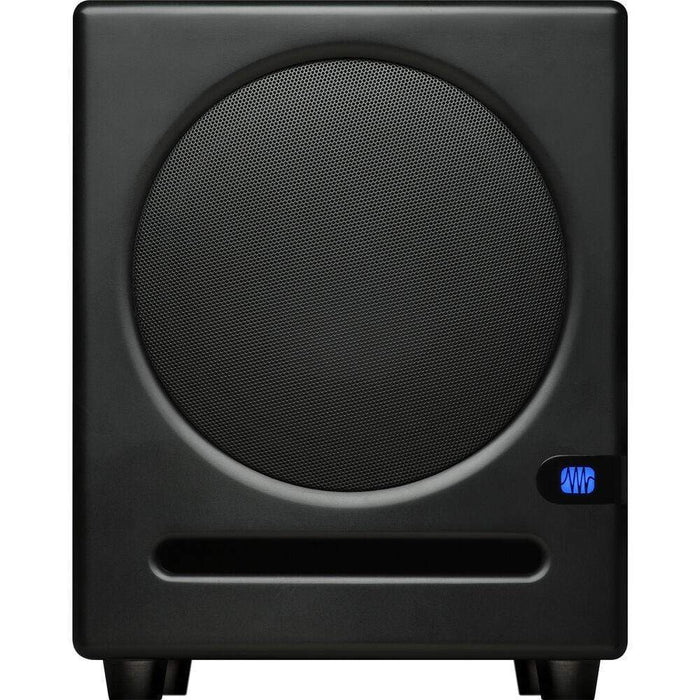

PreSonus ERIS Sub8 Front-Firing, Eight-Inch Studio Subwoofer

by Presonus
Sold out
$ 199.99

The Eris Sub8 is the first subwoofer to join the best-selling PreSonus Eris studio monitor line. Designed from the ground up, it compliments the voicing and frequency response of the modern Eris loudspeakers. The surprisingly robust 100-watt Eris Sub8 drops down to a molar-rattling 30Hz, allowing you to both rock harder and produce better mixes, as you’ll be hearing a more accurate representation of your work. Thanks to robust configuration and I/O, you’ll be able to tailor your Eris Sub8 configuration exactly to your mixing and listening needs. You can connect your existing monitors via 1/4” TRS or RCA, set the input level to your liking, and even invert the polarity. Most importantly, you get a High Pass Filter and a Low Pass Crossover control that ensures your Sub8 starts working at the precise low-frequency point where your main monitors stop working. This makes sure you avoid the blubbery, smudged, low-end mud heard in duplicate, redundant bass reproduction without a crossover.

Features

  • 8" front-firing, paper-composite low-frequency transducer with high-elasticity rubber surround
  • Class AB amplifier: 100W peak (50W RMS) power
  • Input gain control (-30dB to +6dB, continuously variable)
  • Continuously variable low-pass filter (50Hz to 130Hz)
  • Defeatable high-pass filter removes frequency content below 80Hz from the full-range signal sent from the Eris Sub8 outputs to the main speakers

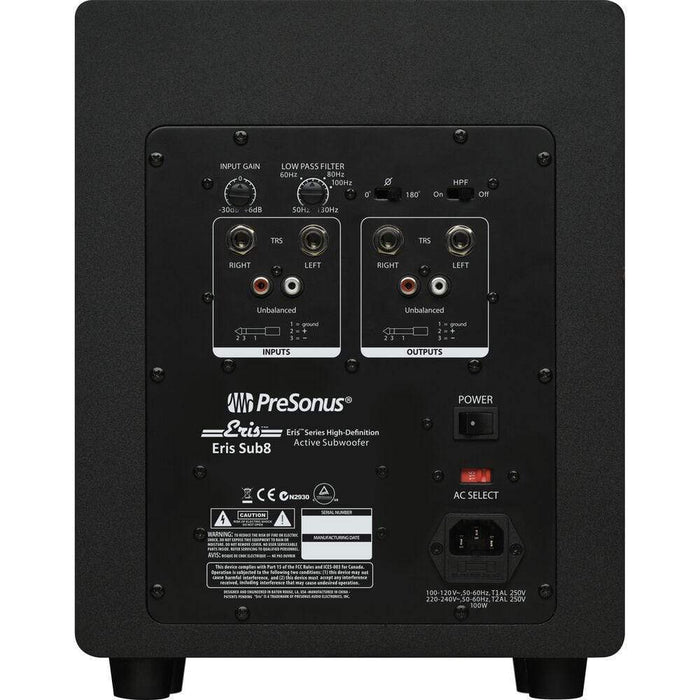

  • Left and right, balanced 1/4" TRS and unbalanced RCA main inputs
  • Left and right balanced 1/4" TRS and unbalanced RCA pass-through outputs for connecting satellite speakers
  • Polarity invert switch
  • Protection: RF interference, output current limiting, over-temperature, turn-on/off transient, subsonic filter, external mains fuse

Specifications

Inputs

  • 1- Balanced XLR
  • 1- Balanced 1/4" TRS
  • 1- Unbalanced RCA

Performance

  • Frequency Response: 35Hz-22kHz
  • Crossover Frequency: 2.2kHz
  • LF Amplifier Power: 75W
  • HF Amplifier Power: 65W
  • Peak SPL (@ 1 meter): 105dB
  • LF Driver: 8”
  • HF Driver: 1.25” silk dome
  • Input Impedance: 10kOhm

User Controls

  • Volume Range: A-type taper
  • MF Control: -6, 0, +6dB
  • HF Control: -6, 0, +6dB
  • Low Cut Flat: 80Hz, 100Hz
  • Acoustic Space Flat: -2dB, -4dB

Protection

  • RF interference
  • Output-current limiting
  • Over-temperature
  • Turn-on/off transient
  • Subsonic filter
  • External mains fuse

Power

  • 100-120V ~50/60Hz or 220-240V ~50/60Hz

Cabinet

  • Vinyl-laminated, medium-density fiberboard

Physical

  • Width: 9.84” (250 mm)
  • Depth: 11.77” (299 mm)
  • Height: 15.12” (384 mm)
  • Weight: 22.2 lb. (10.07 kg)
